Arched Window Glass Replacement for Fort Myers Homes

An arched window brings light and character to a room, but a crack across its curve draws attention fast. When the frame is still sound, arched window glass replacement can restore the opening without tearing out the entire window.

Custom shapes need more than a tape measure and an online order form. In Cape Coral homes, heat, heavy rain, and wind-driven debris can expose failed seals and damaged glazing, while the original trim may still be worth keeping.

The right path starts with a careful site evaluation, then a replacement pane built for that exact opening.

When Glass Replacement Is Enough

Glass replacement and full window replacement solve different problems. Replacing the glass means removing a damaged pane or insulated glass unit and fitting a new one into the existing sash or fixed frame. Replacing the window unit includes the frame, hardware, surrounding finish, and often exterior flashing.

Damage Limited to the Glass

Replacement glass is often appropriate when the frame is stable and the damage stays within the glazing. A single crack, chipped edge, broken tempered pane, or haze between insulated panes can point to a glass problem.

Condensation trapped between panes usually means the sealed unit has failed, so cleaning either glass surface will not remove it. An experienced glazier also checks whether stops, beads, gaskets, and frame channels can be removed and reinstalled without harm.

That examination matters on older architectural windows, where the upper arch may be separate from the rectangular opening below.

When the Frame Needs More Attention

Choose a full unit evaluation if you find decayed wood, corroded metal, a bowed frame, recurring leaks from surrounding construction, or inoperable hardware. Glass alone cannot correct a frame that no longer supports it properly.

In Bonita Springs, salt air and moisture can make that distinction more important, especially near the coast. A glazier can explain whether the frame can accept a new pane or needs a wider window repair.

Separating these conditions during the first visit avoids paying for a new window when the existing frame remains a good fit.

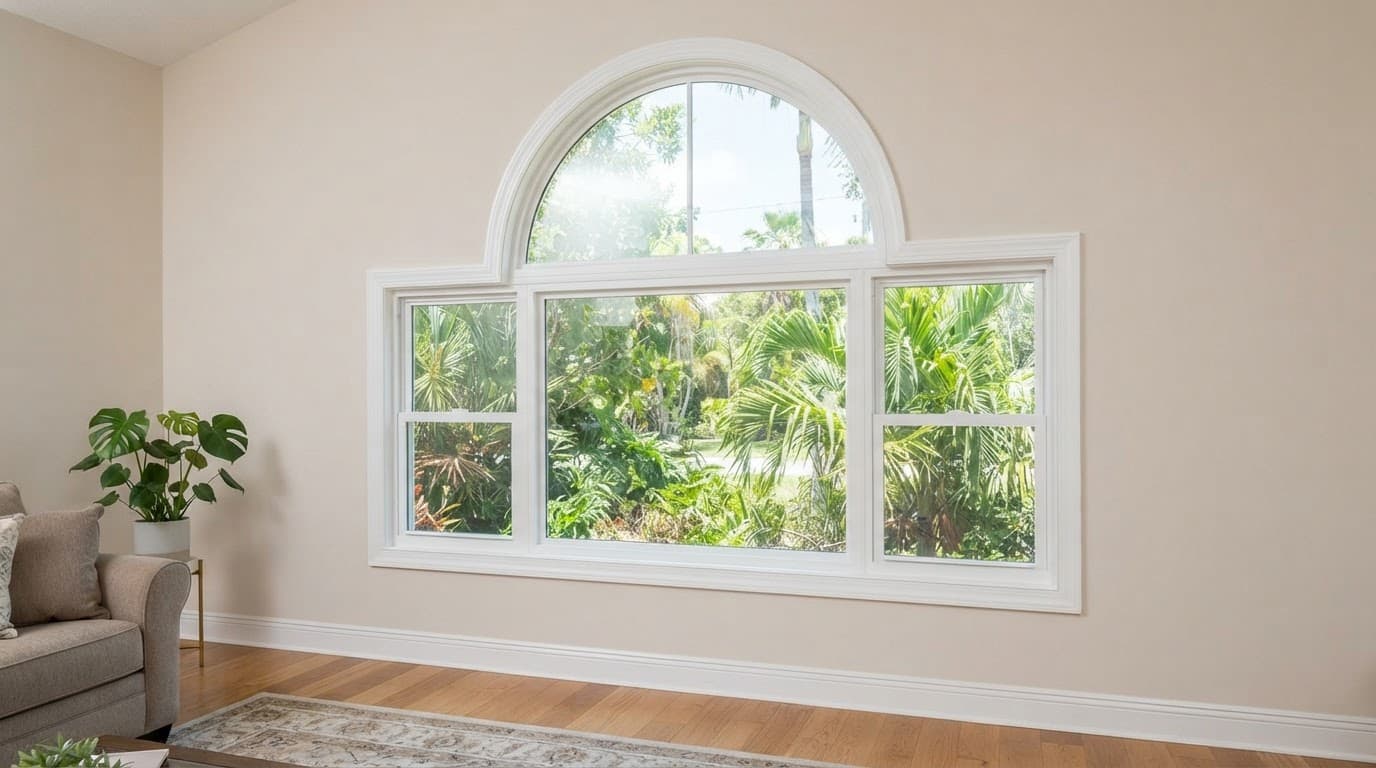

Fixed Arches and Operating Windows

Many half-round and eyebrow windows are fixed, so a glass-only repair does not involve locks or balances. If the custom shape is part of a larger operable unit, the inspection includes how the sash opens, closes, and locks.

Damage in a nonmoving upper section may have a different repair scope than a failed lower sash.

Arched Window Glass Replacement Starts With Exact Measurements

Curves leave little room for error. A pane that appears close to the right width may still miss the arc, bind against a glazing channel, or leave an uneven edge. That is why arched window glass replacement begins at the house, not at a catalog.

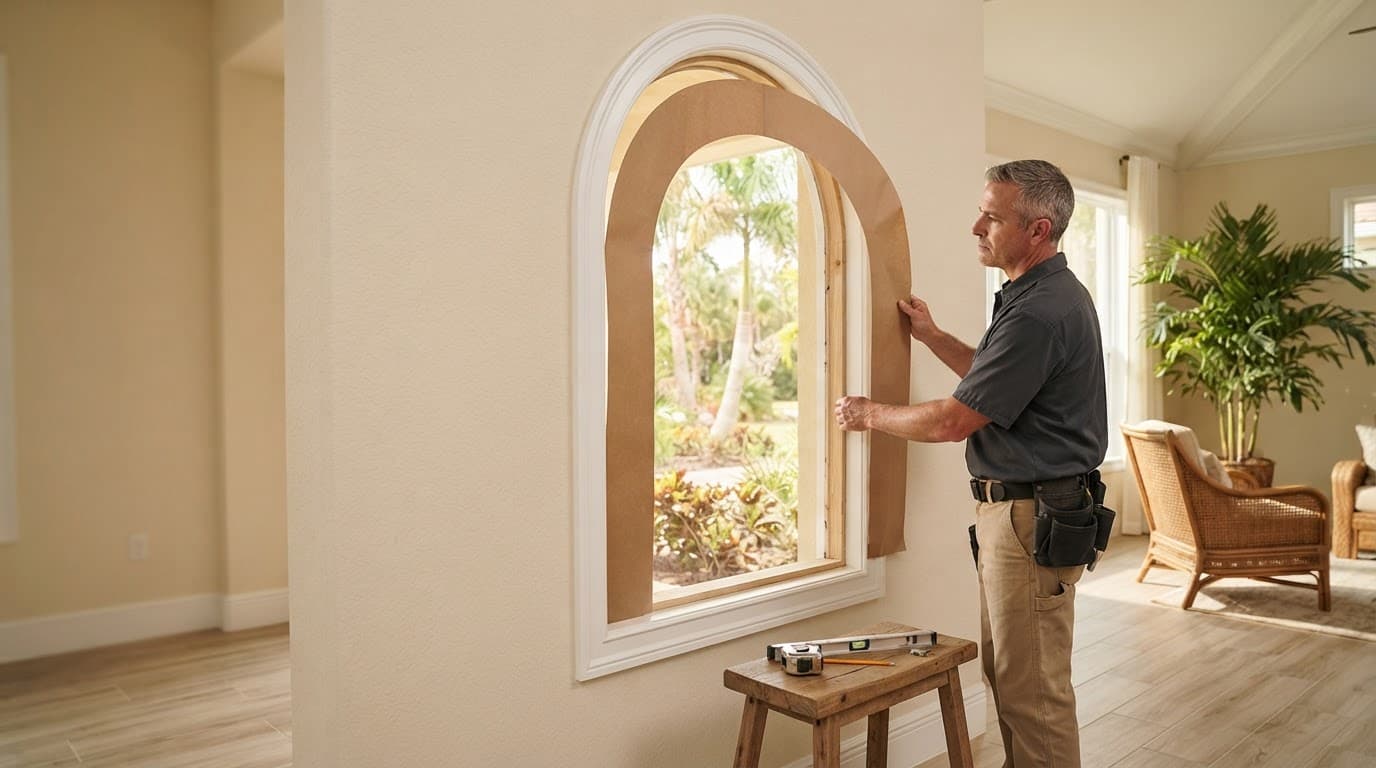

Field Measurements and Templates Capture the True Shape

An experienced glazier measures the finished opening and the glass-receiving area, not only the visible face. For an eyebrow, oval, half-round, or irregular shape, the technician may make a rigid or paper template.

That template captures the true perimeter, including small changes caused by age, prior repairs, or a frame that is not perfectly square. Small variations are common, especially where hand-applied trim or previous glazing changes the edge of the opening.

Do not order a custom pane from rough width and height measurements. Even a correct chord width does not show the exact rise or contour of an arch.

The Existing Glass Assembly Also Matters

Field work identifies the existing glass thickness, spacer system, edge treatment, and glazing method. An arch can use a single pane, an insulated glass unit, decorative divisions, or laminated glass. Those details affect what can fit safely in the frame.

If the original pane is damaged, the glazier can inspect it and document details before fabrication. Estero homeowners get a clearer scope when the inspection separates glass damage from issues in the sash or wall.

Choosing Glass for Custom-Shaped Windows

Once the opening is documented, the next decision is performance. The replacement should suit the room, sun exposure, and existing window system. A matching pane avoids a patchwork appearance and preserves how the window handles light.

Insulated and Low-E Glass for Energy Efficiency

For a failed insulated unit, a replacement can use compatible double-pane construction with a sealed spacer and the proper overall thickness. Low-E coatings can reduce heat transfer, but the coating choice must match the system and the home's needs.

In Naples, sun exposure often matters most on large west- and south-facing arches. Clear glass, light tint, privacy patterns, and solar-control options change the view and the amount of visible light.

A glazier can compare samples against nearby windows before the glass is ordered. Matching the visible color indoors and outdoors prevents the replacement from looking noticeably darker or more reflective.

Safety Glass and Impact Considerations

Safety glazing deserves an application-specific review. Tempered glass breaks into small pieces, while laminated glass holds together with an interlayer after breakage. Building-code requirements depend on the window's location and use, such as areas near doors, floors, tubs, or walking surfaces.

Impact-rated assemblies require more than a strong-looking pane. The glass, frame, glazing method, and fastening details may all be part of the tested system. In Lehigh Acres, ask for an evaluation of the whole opening rather than assuming any replacement glass qualifies.

Frame Compatibility and Weather Sealing Matter

A perfect piece of glass still needs a frame that can hold it correctly. The fit depends on material, glazing pocket depth, retaining components, and how the window moves or stays fixed.

Matching the Existing Window System

Vinyl, aluminum, wood, and composite frames use different glazing details. A replacement must match the allowable thickness and leave the clearances required by that frame. Some older wood windows use exterior stops, while other units rely on snap-in beads or gasket systems.

Color, tint, grids, and obscure patterns should also be checked under daylight. A close visual match matters most when an arched lite sits above several adjacent windows.

Glazing compounds and sealants must adhere to the frame material without reacting with it. This is one reason a generic repair kit may be a poor match for a custom window.

Protecting the Opening From Water Intrusion

Weather sealing controls more than drafts. Proper setting blocks support the glass, while compatible gaskets or sealants help shed water and manage movement as temperatures change.

Installers should preserve designed drainage paths, including weep holes, rather than sealing them shut. Water should leave the system through its intended route, not collect behind a new bead of sealant.

In Punta Gorda and other exposed coastal communities, rain can drive water against an arch from several angles. A final seal inspection helps catch perimeter gaps before they become stains on interior trim.

What to Expect From a Professional Glass Visit

A professional visit turns a confusing repair into a defined job. It also gives you a chance to discuss appearance, energy concerns, safety needs, and access before a pane is made.

Inspection Before Custom Fabrication

The glazier begins with a visual check of the glass, sash, frame, trim, and nearby caulking. Photos can help show a crack's location before the appointment, yet they cannot replace field measurements.

After the opening is measured or templated, the shop can fabricate the replacement to the approved dimensions. For shaped panes, custom glass cutting in Fort Myers pairs the finished measurements with the selected glass type and edge details.

Custom fabrication takes its lead from the actual opening, so timing and cost depend on shape, glass build, and any special materials. Access can affect the plan too. High foyer windows, stairwells, and exterior elevations may need added preparation.

Installation and Final Fit Checks

On installation day, the crew protects nearby surfaces, removes broken or failed glazing, and clears the channel. They set the replacement on proper supports, secure the retaining parts, and complete the perimeter seal as the system requires.

Before leaving, a glazier should check glass alignment, visible gaps, hardware operation where applicable, and cleanup. This process works for a small upper arch in a Fort Myers entry as well as a custom fixed window in Cape Coral.

The Right Repair Preserves the Window You Love

A cracked or fogged custom window does not automatically call for a full window project. When the frame is sound, arched window glass replacement preserves original trim while renewing the part that has failed.

Accurate field measurements, compatible glass, safety review, and careful weather sealing all protect the fit. They also prevent a nearly correct curved pane from becoming an expensive second attempt.

For homeowners across Southwest Florida, a qualified glazier can turn an unusual shape into a well-matched repair.
